WHEELED TRACTOR 50-140 HP

Our robust range of medium to heavy-duty tractors (504, 604, 704, 804, TE904, TE1004, TB1204, TB1304, 1404TB) is engineered for efficiency and ease of use across diverse agricultural tasks. Key Features & Benefits: - Powerful & Reliable: Equipped with proven Weifang series engines (Laidong optional) ranging from 50HP to 140HP, delivering dependable performance. - Strong Transmission & PTO: Feature durable transmissions (TY8+8, TYE8+8, TE8+8, 12F+12R, 16F+8R creeper optional) with shuttle shift (on 70HP+ models) and robust rear PTO (540/720 RPM) to drive demanding implements. - Exceptional Hydraulics: Standard rear dual hydraulic quick couplers with force lift/drop provide precise implement control and quick attachment changes. - Enhanced Stability & Safety: Include essential safety frames (ROPS on TE1004+) and multiple counterweights (front & rear) for stability during heavy operations. - Easy Operation: Designed for operator comfort and simplicity, featuring shuttle shift for effortless direction changes (70HP+), adjustable wheelbases, and flat floor configurations (on larger models). - Multi-Purpose Design: Ready to power a wide array of implements including rotary tillers, plows (hydraulic reversible), straw returners, ditchers, bulldozers, excavators, and more, 15+accessries available. Built for Productivity: Combining powerful engines, strong drivetrains, responsive hydraulics, and operator-friendly features, these tractors offer a simple yet effective solution for maximizing productivity in the field.

上一个下一个

详细内容

Specifications For 50-140 HP

504 Medium Tractor

Dimensions (3.1*1.5*1.97) (LWH) Wheelbase adjustable

Basic Configuration: TY8+8 Power Take-off (PTO) transmission (60mm thick axle)

50HP Weifang series engine (Laidong optional)

Tires: Rear 11.2-24, Front 650-16

Rear dual hydraulic quick couplers with force lift/drop

Safety frame, 2 rear counterweights, 4 front counterweights

Rear PTO 540-720, Weight 1380kg, With cab 1630kg

604 Medium Tractor

Dimensions (3.1*1.5*1.97) (LWH) Wheelbase adjustable

Basic Configuration: TYE8+8 PTO transmission (60mm thick axle)

60HP Weifang series engine (Laidong optional)

Tires: Rear 11.2-24, Front 650-16

Rear dual hydraulic quick couplers with force lift/drop

Safety frame, 2 rear counterweights, 4 front counterweights

Rear PTO 540-720, Weight 1386kg, With cab 1636kg

704 Medium Tractor

Dimensions (301*1.5*2.05) (LWH) Wheelbase adjustable

TYE8+8 PTO transmission with shuttle shift

70HP Weifang series engine (Laidong optional)

Tires: Rear 11.2-28, Front 750-16

Rear dual hydraulic quick couplers with force lift/drop

Safety frame, 2 rear counterweights, 4 front counterweights

Rear PTO 540-720, Weight 1520kg, With cab 1770kg

804 Medium Tractor

Dimensions (3.1*1.5*2.05) (LWH) Wheelbase adjustable

TE 8+8 PTO transmission with shuttle shift

80HP Weifang series engine (Laidong optional)

Tires: Rear 11.2-28, Front 750-16

Rear dual hydraulic quick couplers with force lift/drop

Safety frame, 2 rear counterweights, 4 front counterweights

Rear PTO 540-720, Weight 1530kg, With cab 1780kg

TE904

Dimensions (3.1*1.5*2.05) (LWH)

TE8+8 PTO transmission with shuttle shift

90HP Weifang series engine (Laidong optional)

Tires: Rear 11.2-28, Front 750-16

Rear dual hydraulic quick couplers with force lift/drop

Safety frame, 2 rear counterweights, 4 front counterweights

Rear PTO 540-720, Weight 1630kg, With cab 1880kg

Large TE1004

Dimensions 3.4*1.6*2.2

100HP Weifang series engine (Laidong optional)

Large TE8+8 shuttle + side shift, 030 heavy-duty maintenance-free front axle, upgraded flat floor

Tires: Front 8.3-20, Rear 12.4-28

Force lift/drop, dual rear PTO 540/720

4 front + 4 rear counterweights

ROPS (Roll-Over Protective Structure), Weight 1630kg, With cab 1880kg

TB1204

Dimensions 3.7*1.75*2.25

120HP Weifang series engine (Laidong optional)

12F+12R side shuttle shift

Tires: Front 9.5-24, Rear 14.9-30

Dual hydraulic valves, Rear PTO 540/720

6 front + 4 rear counterweights, Dual fuel tanks

11" dual-stage clutch, Weight 2880kg, With cab 2900kg

TB1304

Dimensions 3.7*1.75*2.25

130HP Weifang series engine (Laidong optional)

12F+12R side shuttle shift

Tires: Front 9.5-24, Rear 14.9-30

Force lift/drop dual rear PTO 540/720

6 front + 4 rear counterweights, Dual fuel tanks +500

11" dual-stage clutch, Weight 2890kg, With cab 2920kg

1404TB Heavy-duty Tractor

Dimensions: 4000*1750*2850mm

Travel speed: 2.2-32km/h

Diesel engine: Weifang engine/6108 natural aspiration

Working speed: 8-12 mu/hour

Weight: 3300kg (With cab: 3560KG)

Air cleaner: 3-stage wet type

Fuel consumption: 10L/hour

Cooling system: Water circulation

Transmission: Mechanical planar configuration

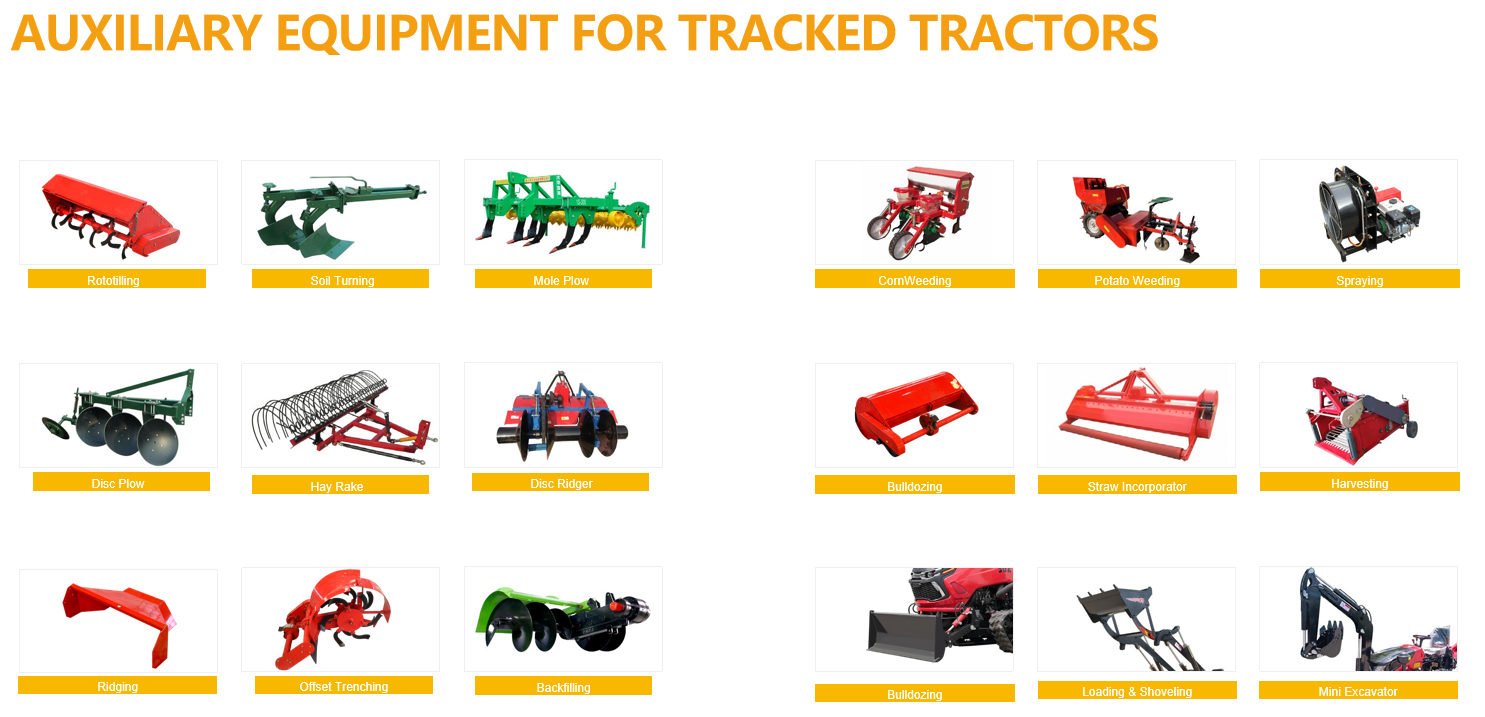

Optional implements: Rotary tiller, Hydraulic reversible plow, Straw returning machine, Ditcher, Bulldozer, Excavator, etc.

Gears: 12F+12R Shuttle (Optional side/middle shift), 16F+8R creeper gears (+600)

Transmission: Custom gear transmission

Engine power: 107kw/140HP

Rear output: Force lift/drop, Dual hydraulic outputs, Dual PTO 540/720

Tires: Front 9.5-24, Rear 14.9-30

Standard: Flat floor
